AVE TPMS for Trucks/ Trailer/ Buses
Share
AVE- Container Truck

Features:
1.Unique Product - Every tractor and trailer can connect automatically.

2.A fleet can arrange up to 9999 trailers.

3.The tractor can be monitored with 2 trailers back of it at the same time.

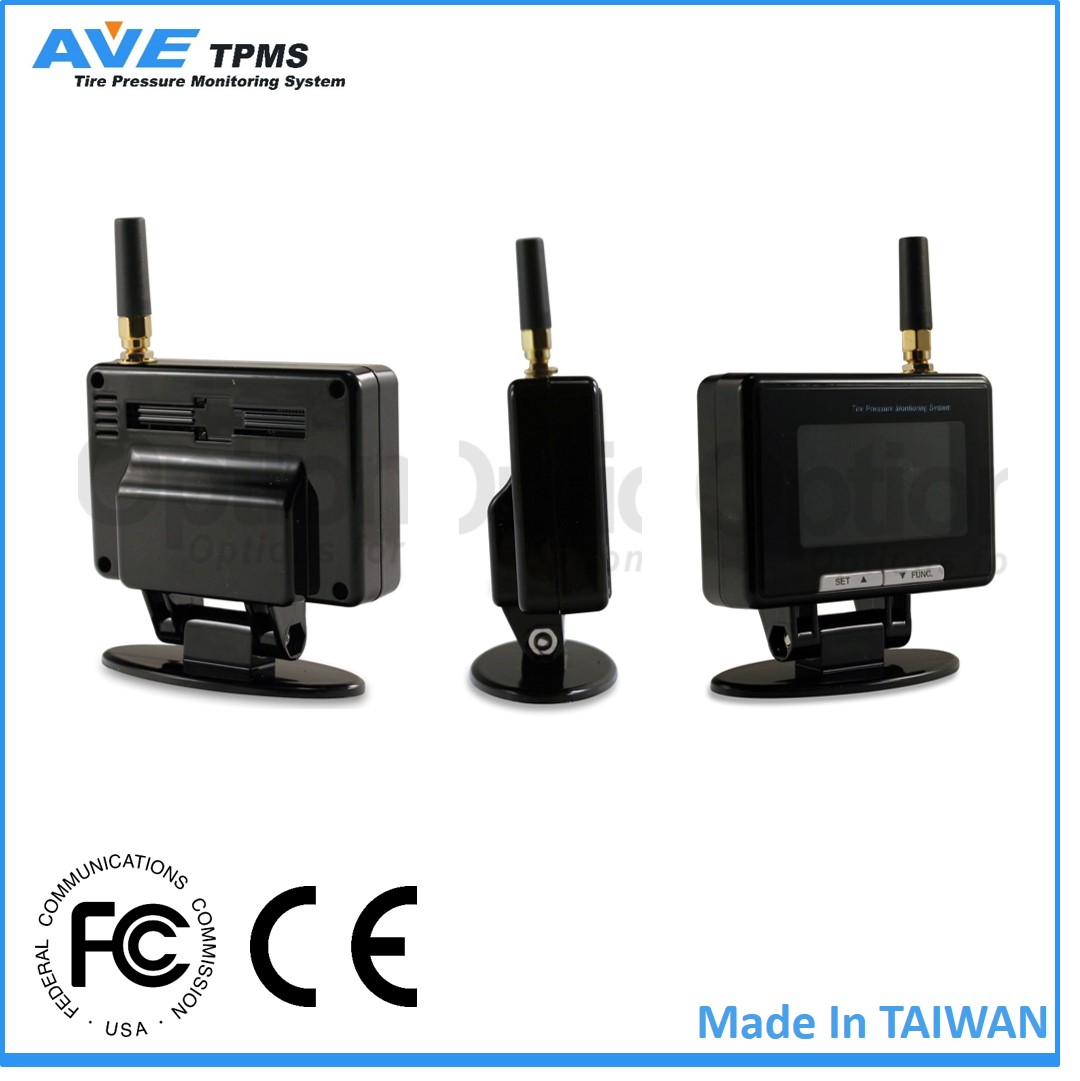

Tractor Receiver ( Tractor receiver electric characteristic)

Usage Voltage

9~30V

Input Voltage

12V / 24V

Standby Current

18mA(Max)

Operating Current

45mA(Max)

Receipt Frequency

433.92±75KHZ

Storage Temperature

-40℃~+125℃

Operating Temperature

-20℃~+85℃

Receipt Sensitivity

Sensitivity of inner receipt Module ≦-100dBm

Receipt Modulation Mode

FSK



Container Repeater Receiver ( Container Repeater receiver electric characteristic)

Usage Voltage

9~30V

Input Voltage

12V / 24V

Operating Current

25mA(Max)

Receipt Frequency

433.92±75KHZ

Storage Temperature

-40℃~+125℃

Operating Temperature

-20℃~+85℃

Receipt Sensitivity

Sensitivity of inner receipt module ≦-100dBm

Receipt Modulation Mode

FSK

Transmitting RF OUTPUT

-5dBm~ -15dBm (Leave 10 cm away from the antenna of Spectrum Analyser)





Product Description
AVE TPMS for Truck Trailer Bus Sensors/Transmitter Specifications
  • Battery voltage 3V
  • Storage Temperature -40°C to +125°C
  • Operating Temperature -20°C to +85°C
  • Temperature Resolution ±1°C
  • Pressure range 1500kPa
  • Pressure Resolution 5.5kPa
  • Operating Frequency 433.92 MHz

Receivers Specifications
  • Operating Voltage 24V to 30V
  • Operating Temperature -20°C to +85°C

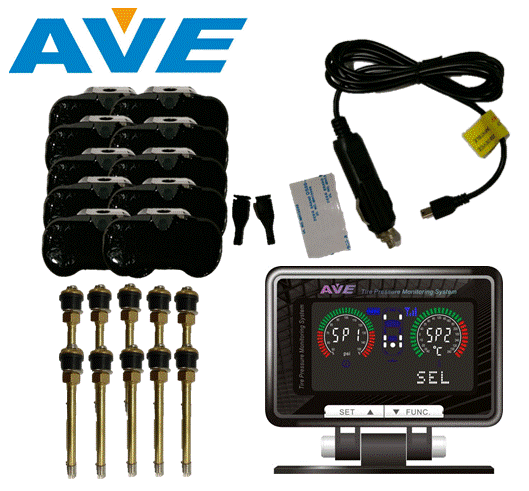

AVE TPMS T100 for Trucks:
  • High-class wireless transmitting/receiving
  • Full-time & Real-time monitoring
  • Color LCD to differentiate normal and warning condition
  • Three pressure units switch: kPa/bar/psi
  • Two temperature units switch: °C/°F
  • 5~7 years internal sensor battery usage life
  • Car battery voltage monitoring
  • Programmable tire to fit any type of vehicle
  • Programmable tire up to 27 tires as maximum of each vehicle
  • Programmable with either internal or external sensors
  • Display sensor signal status and temperature
  • Second standard pressure value available on each monitor
  • Multiple accessories available for trailer : Antenna Cable, repeater
