AVE TPMS for Passenger Car
AVE TPMS T100 Classic Series
感測器/ 發射器
電池壽命 (在正常使用狀況下)大約為5到7年
電池電壓 3V
儲存溫度 -55°C to125°C
操作溫度 -55°C to125°C
操作溫度 -40°C to 125°C
溫度誤差值 ±3°C
壓力範圍 轎車700kPa/卡車1400kPa
操作濕度 100%
操作頻率 433.92 MHz


操作電壓 轎車9V to 30V/ 卡車17V to 30V
操作溫度 -20°C to 85°C
監控溫度 -40°C to 112°C
Product Description
AVE TPMS Sensors/Transmitter Specifications
  • Battery voltage 3V
  • Storage Temperature -55°C to 125°C
  • Operating Temperature -40°C to 125°C
  • Temperature Resolution ±1°C
  • Pressure range 900kPa
  • Pressure Resolution 2.35kPa
  • Operating Frequency 433.92 MHz

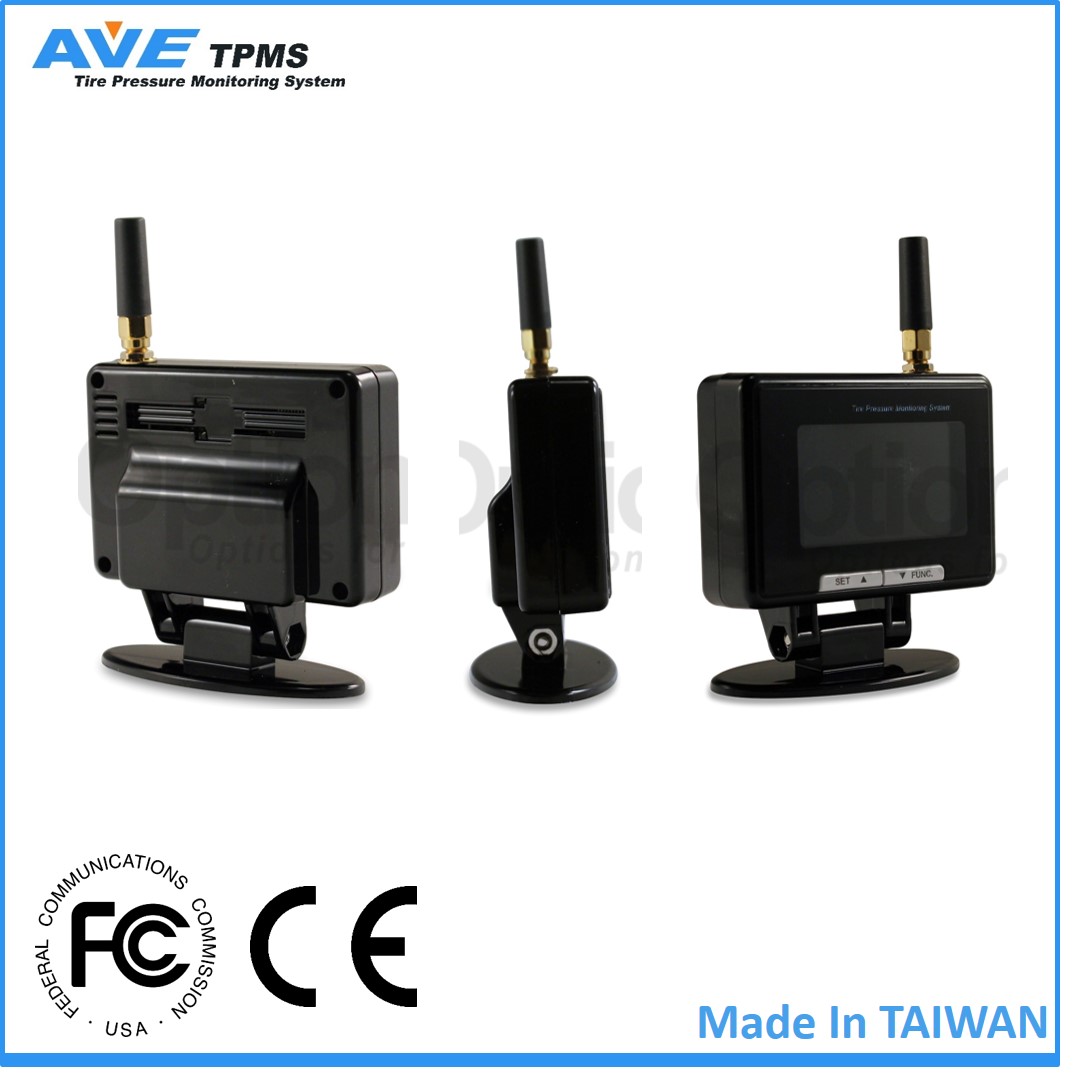

Receivers Specifications
  • Operating Voltage 9V to 18V
  • Operating Temperature -20°C to 85°C

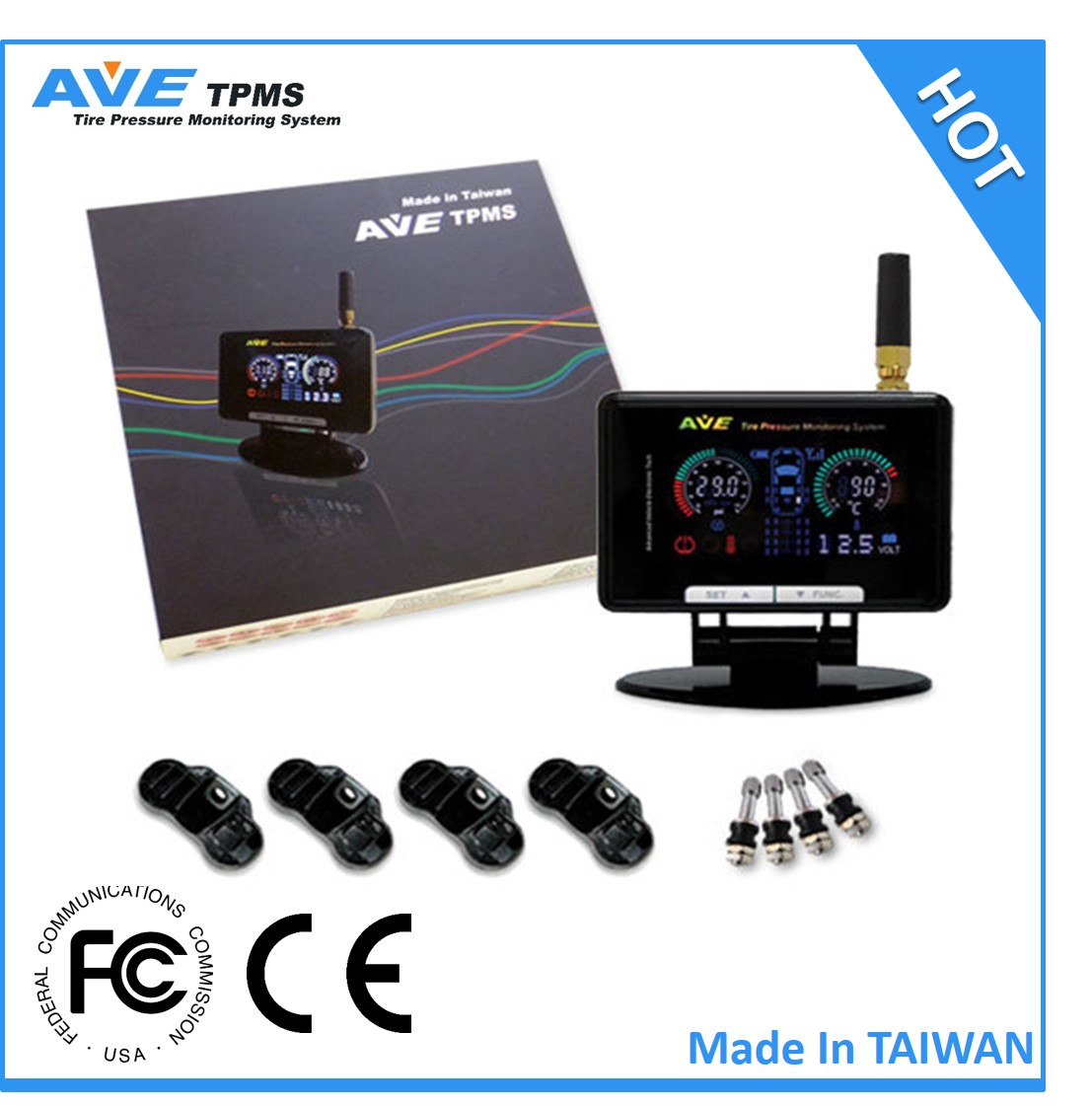

AVE TPMS T100 Classic:
  • High-class wireless transmitting/receiving
  • Full-time & Real-time monitoring

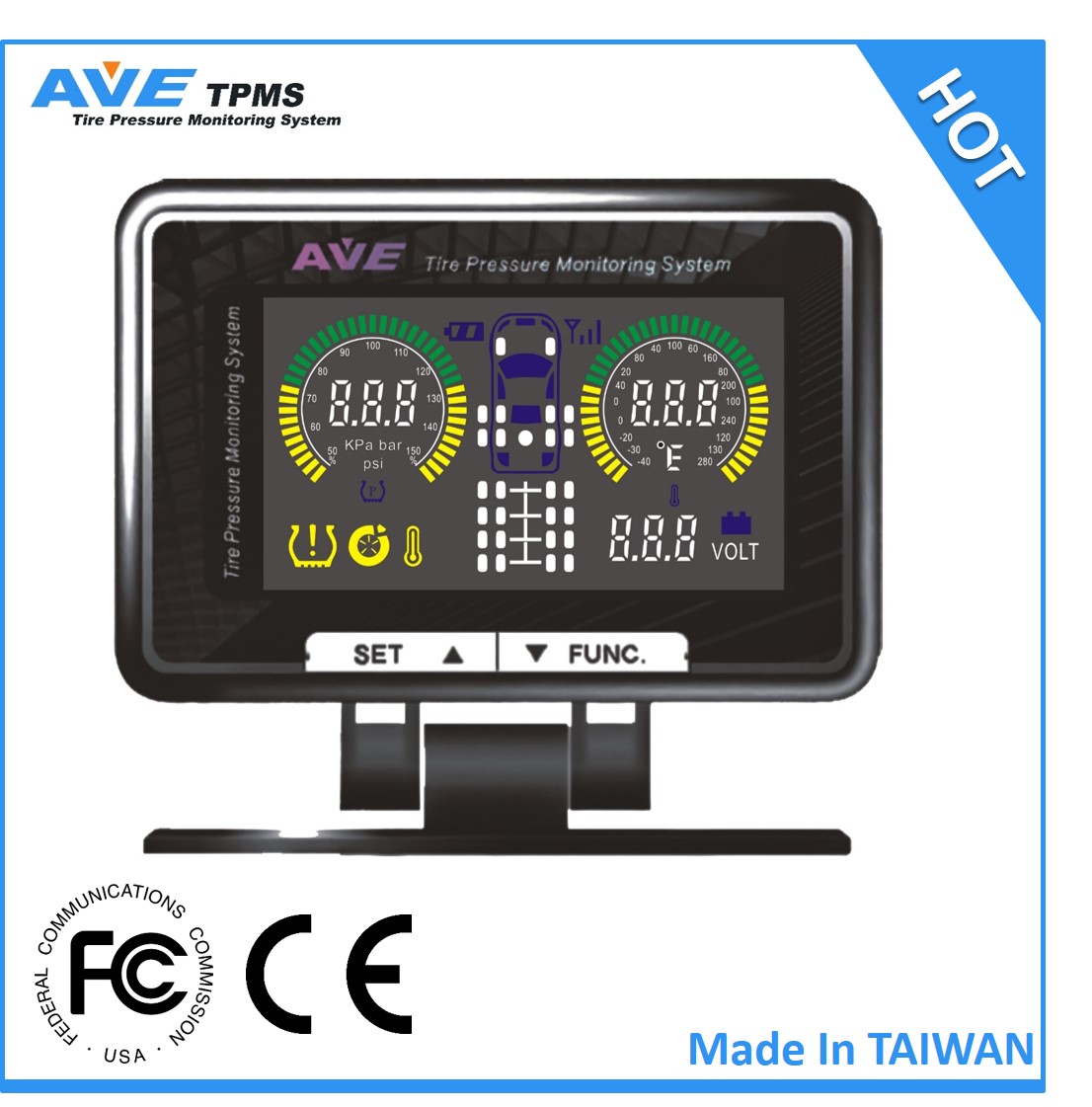

  • Color LCD to differentiate normal and warning condition
  • Three pressure units switch: kPa/bar/psi
  • Two temperature units switch: °C/°F
  • 5~7 years internal sensor battery usage life
  • Car battery voltage monitoring
  • Programmable tire to fit general vehicles
  • Programmable tire up to 27 tires as maximum of each vehicle
  • Programmable with either internal or external sensors
  • Display signal status and temperature
  • Second standard pressure value available to setup on each monitor
  • Multiple accessories available
