AVE TPMS for Passenger Car

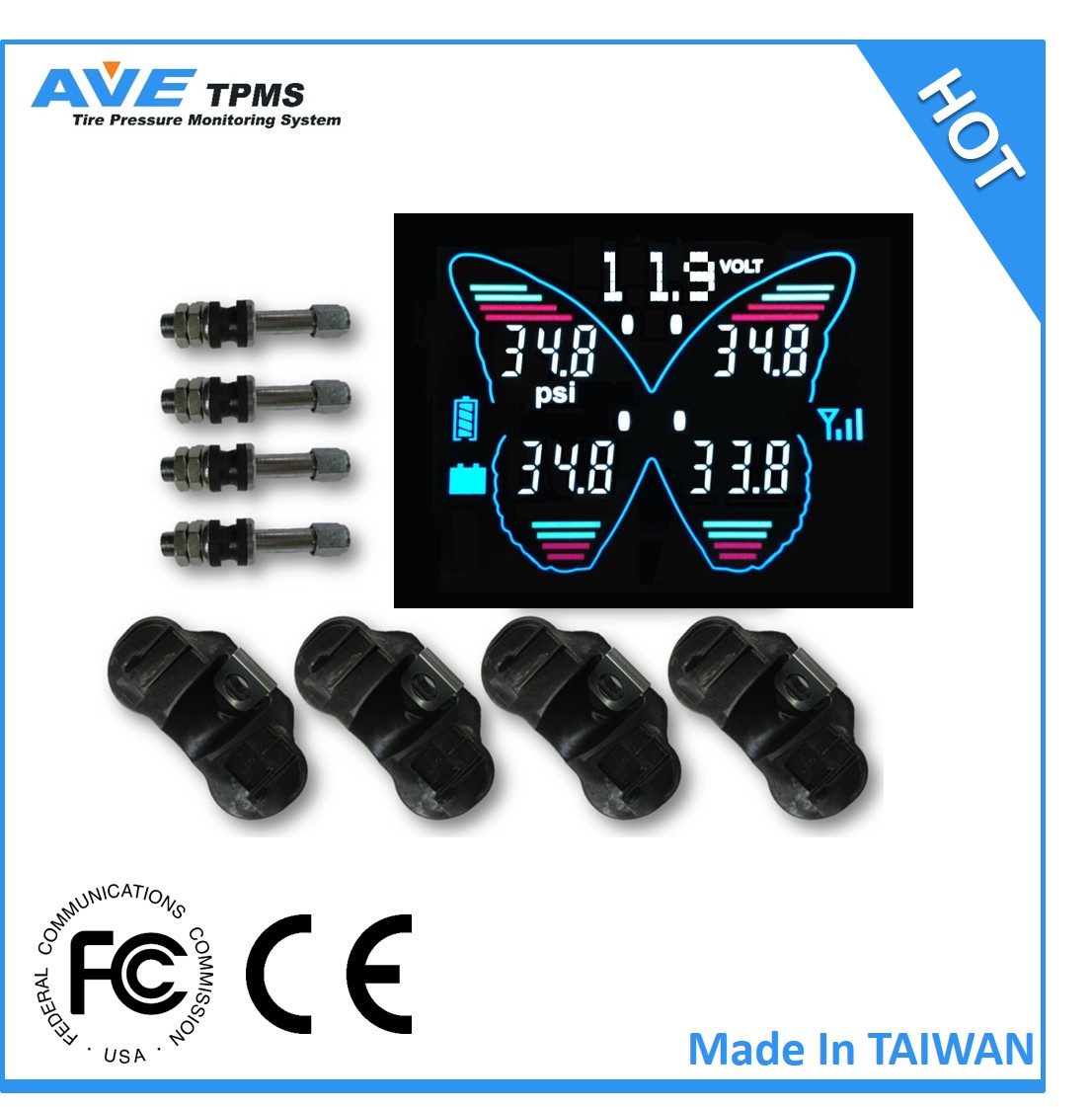

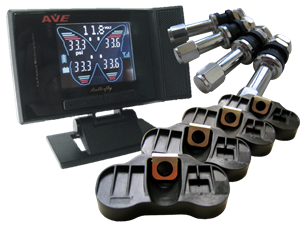

AVE TPMS T100 Butterfly
Product Description
AVE TPMS Sensors/Transmitter Specifications
  • Battery voltage 3V
  • Storage Temperature -55°C to 125°C
  • Operating Temperature -40°C to 125°C
  • Temperature Resolution ±1°C
  • Pressure range 900kPa(Car ), 1500kPa(Truck)
  • Pressure Resolution 2.35kPa(Car), 5.5kPa(Truck)
  • Operating Frequency 433.92 MHz
Receivers Specifications
  • Operating Voltage 9V to 18V
  • Operating Temperature -20°C to 85°C
AVE TPMS T100 Butterfly:
  • High-class wireless transmitting/receiving
  • Full-time & Real-time monitoring
  • Color LCD with butterfly pattern
  • Easy to differentiate normal and warning pressure condition
  • Display 5 wheels tire pressure status at the same time
  • Two pressure units switch: bar/psi
  • Two temperature units switch: °C/°F
  • 5 years internal sensor battery life
  • Car battery voltage monitoring
  • Programmable tire to fit any type of vehicle
  • Programmable tire up to 12 tires as maximum of each vehicle
  • Programmable with either internal or external sensors
  • Display sensor signal status and temperature

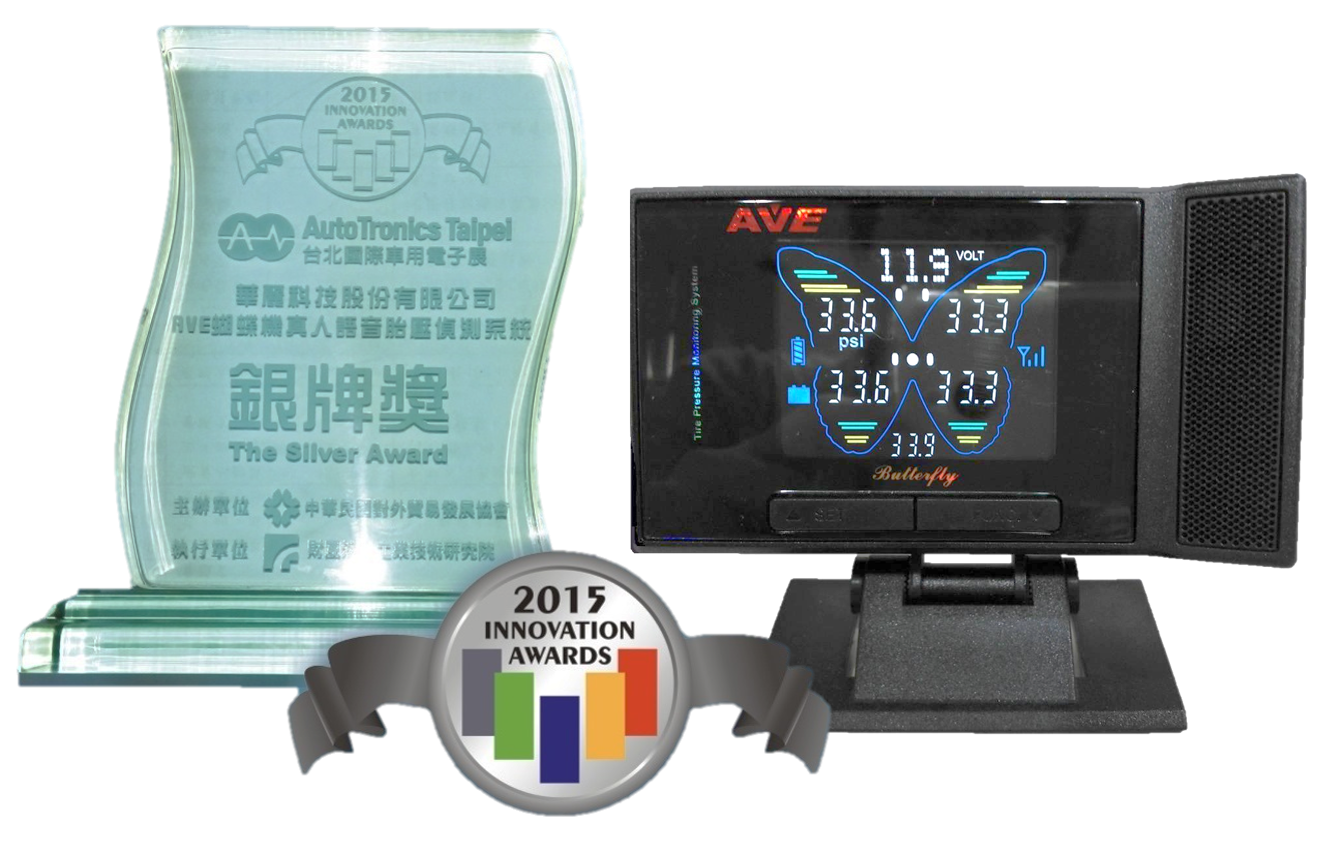

  • The first & only TPMS with vocal report in Taiwan
  • Second standard pressure value available on each monitor
